Home Office Network Setup That Actually Works

At 9:04 on Monday morning, your video call freezes halfway through a sentence. A few seconds later, the audio returns as a fast, distorted burst. Someone starts an online game, the smart TV resumes streaming, and a large design upload stops moving. Your internet plan may still show an impressive download speed, but the workday feels unreliable.

A dependable home office network setup isn't built around a headline Mbps figure. It's built around a stable path from the provider's handoff to your laptop, predictable behavior when the household is busy, and sensible separation between work devices, guests, and smart-home equipment. The priorities are packet loss, latency, contention, and security, with speed treated as one useful measurement rather than the entire design.

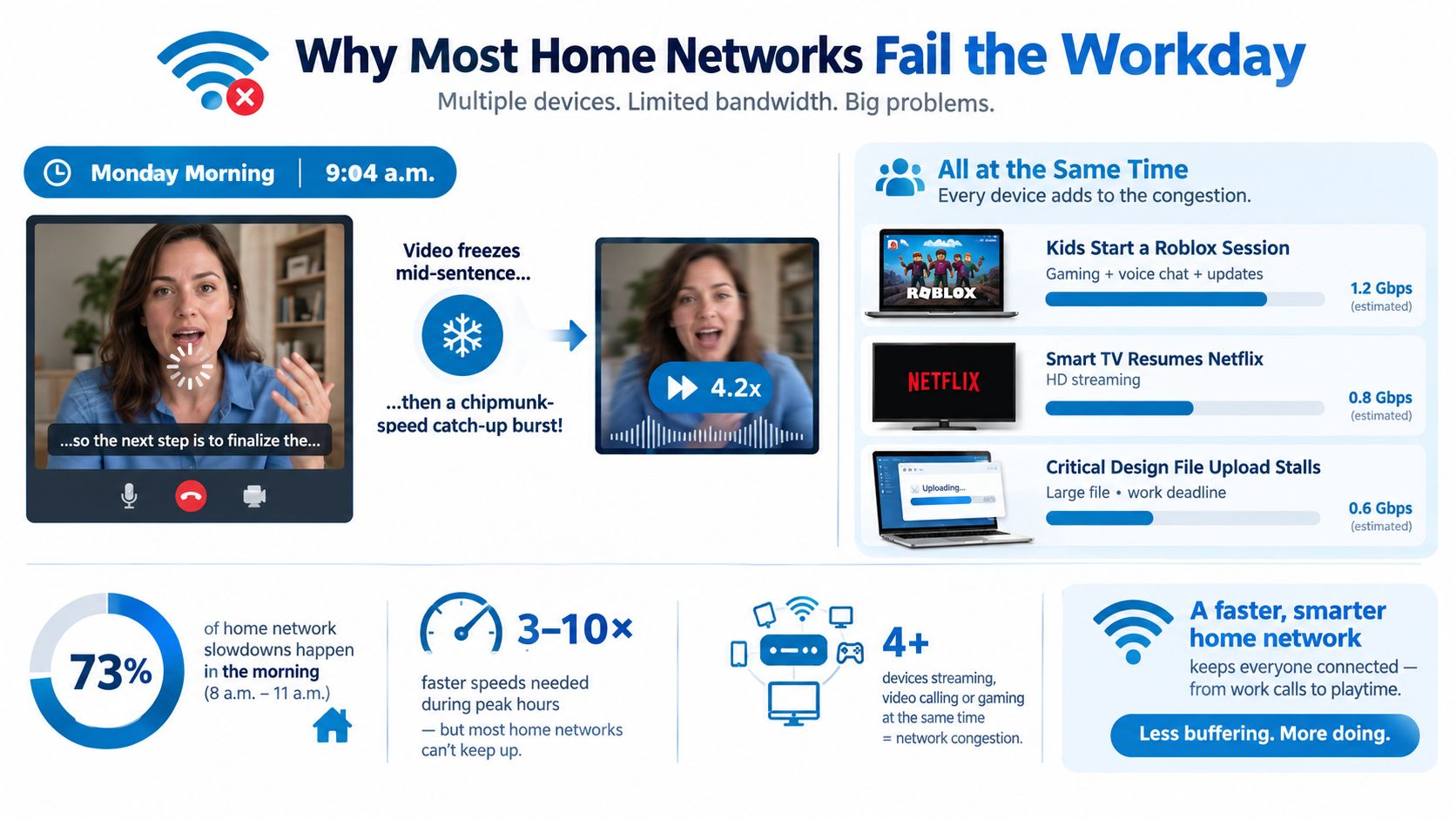

Why Most Home Networks Fail the Workday

The usual failure isn't exotic hardware. It's a network designed as a one-time purchase instead of a system that has to support an entire workday.

A connection can perform well during a quiet speed test and still struggle when several devices compete for the same uplink or wireless channel. Large uploads fill the queue, which can delay small but time-sensitive packets for voice and video. Nearby networks also compete for shared spectrum, especially on the crowded 2.4 GHz band. Meanwhile, a flat home network gives every connected device more access than it needs.

Design for the bad hour

The useful question isn't, “How fast is the connection?” Ask instead, “What happens when the network is busy?”

A reliable design should keep a call usable while cloud storage synchronizes, prevent a family member's streaming session from consuming every available queue, and stop an untrusted device from reaching work files. Those goals lead to practical choices:

• Connect fixed work devices by cable: A desktop, dock, VoIP phone, or workstation that stays in one place shouldn't depend on radio conditions.
• Shape the uplink: QoS or traffic shaping protects interactive traffic when uploads compete with calls.
• Separate device groups: Work, guest, family, and IoT devices don't need identical network access.
• Test under load: A quiet speed test says little about how the network behaves during a real meeting and backup.

Practical rule: Optimize for the worst ordinary workday, not the best five-minute benchmark.

Wi-Fi standards have evolved through a combination of standardized wireless access, consumer hardware, and unlicensed spectrum. The first IEEE 802.11 wireless LAN standard was published in June 1997 and supported wireless transmission up to 2 Mbit/s over the unlicensed 2.4 GHz band. In 1999, Apple's AirPort base station and iBook helped bring wireless networking into mainstream homes, while 802.11b raised theoretical rates to 11 Mbit/s, making everyday home networking more practical. IEEE's history of Wi-Fi standards puts the modern home network in context: it was never just about one fast device, but about standards, hardware, and accessible spectrum working together.

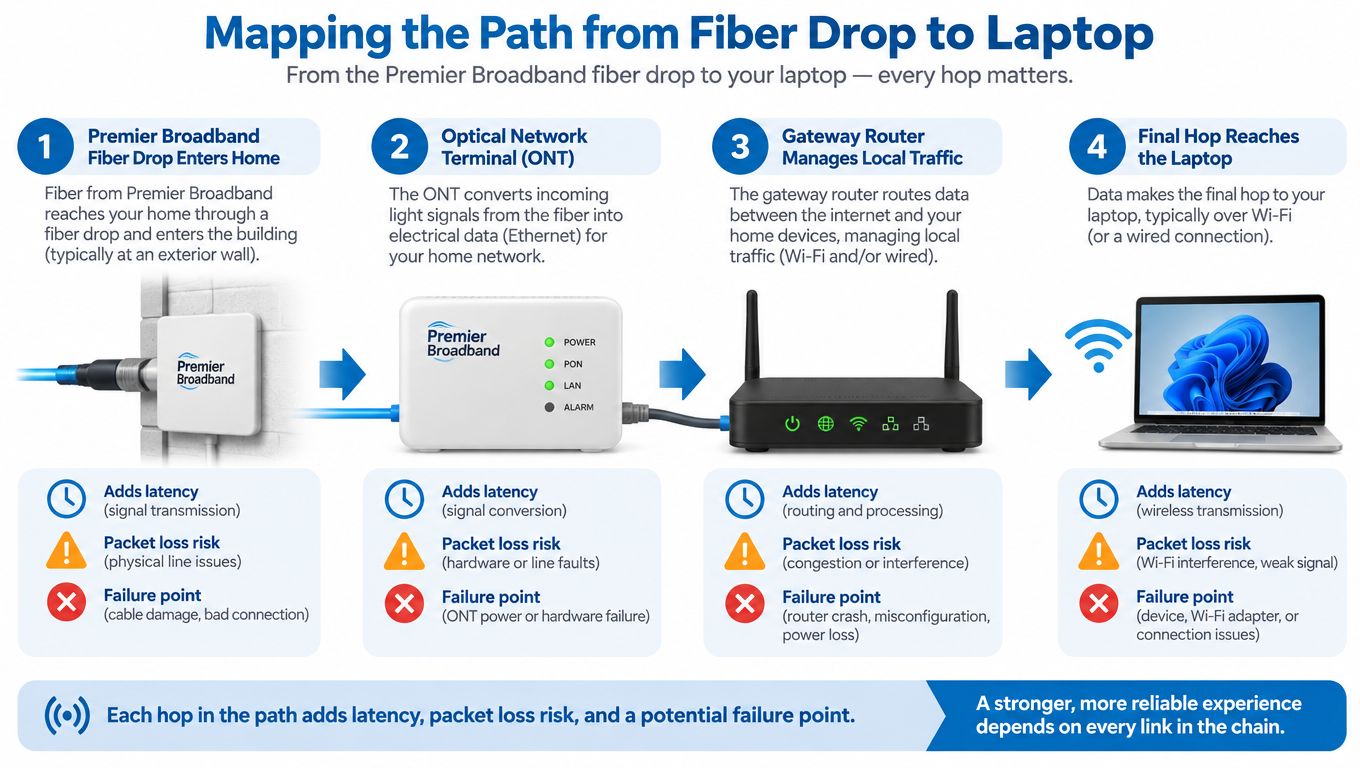

Mapping the Path from Fiber Drop to Laptop

Troubleshooting gets easier when you can name every hop. Data doesn't jump directly from the fiber line to your laptop. It crosses equipment that converts signals, makes routing decisions, applies security rules, and moves traffic between wired and wireless segments.

The typical path looks like this:

1. Fiber drop: The provider's fiber enters the property and terminates at the optical handoff.
2. Optical Network Terminal: The ONT converts the optical signal into an Ethernet connection. If the provider reports an optical or line problem, changing Wi-Fi settings won't fix it.
3. Router WAN port: The router receives the upstream connection and handles functions such as NAT, DHCP, firewall policy, traffic prioritization, and, where supported, VLAN tagging.
4. Switch or access point: A wired switch distributes Ethernet to desks, docks, phones, and printers. An access point bridges wireless frames onto the appropriate network.
5. Laptop: The final client may connect through Ethernet, a dock, or Wi-Fi. Its adapter, driver, channel width, and signal conditions affect the result.

Use symptoms to isolate the fault

A frozen call with a strong speed test often points downstream of the router, such as wireless interference, poor client placement, or an overloaded access point. A frozen call paired with poor throughput suggests a WAN, ONT, or provider-side issue. Slow transfers on one wired device can indicate a cable, port, negotiation, or switch problem rather than an internet-plan limitation.

Start with a wired computer when commissioning the connection. Confirm that the ONT feeds the router's WAN or Internet port, then test the router before adding switches, access points, and extra policy rules. If you're comparing equipment or planning a more structured installation, Premier Broadband's ShelfCount product page is a useful example of keeping hardware planning visible rather than treating the network as a box hidden in a closet.

The order matters because each additional hop creates another place for a bad cable, overloaded processor, incorrect VLAN assignment, or wireless condition to interfere. An ISP gateway may handle basic routing well, but VPN processing, parental controls, guest isolation, and traffic rules can place more demand on consumer hardware. Keep the initial path simple, test it, and add complexity only when it solves a defined problem.

Wired or Wireless at the Desk

For a device that stays in the same place all day, Ethernet is usually the least dramatic and most effective improvement. Run a Cat6 cable from the router or a wired switch to the desk, then let Wi-Fi handle devices that move.

The right comparison is a field test, not a specification sheet. Measure latency and jitter from the existing wireless connection during a quiet period, then repeat while the household is active. Test at the actual desk, through the actual wall, with the laptop in its normal position. A wired result that looks similar in peak throughput can still feel better because it avoids changing radio conditions and reduces variability during calls.

Wi-Fi 6 and 6E can be a strong choice when both the router and client support the same generation and channel width. Intel reports that a 2×2/80 MHz Wi-Fi 6 or 6E connection can reach 1201 Mbps, compared with 173 Mbps for 2×2/20 MHz Wi-Fi 5, and reports up to 75% lower latency versus standard Wi-Fi 5 in its benchmark material. Intel's Wi-Fi performance benchmarks also highlight the importance of matching client and router capabilities rather than assuming the router alone determines performance.

If the device sits in the same spot for the whole shift, plug it in. Save wireless capacity for devices that need mobility.

For a polished workspace, cable routing should be part of the furniture plan, not an afterthought. A well-placed handcrafted office desk from Tyner Furniture can make it easier to keep the dock, switch, monitor cables, and power management organized without putting the access point behind a metal cabinet.

Prioritizing Calls, Uploads, and Backups

QoS works when it reflects how your household uses the connection. It is not a magic speed boost, and switching it on without knowing the uplink capacity can make troubleshooting harder.

Start by classifying traffic according to how badly it reacts to delay:

• Live calls: Zoom, VoIP, and other interactive sessions need low delay and low loss. They usually don't consume the most bandwidth, but they suffer first when queues become bloated.
• Large transfers: Design files and cloud uploads can use substantial upstream capacity. They can tolerate waiting, especially during a meeting.
• Background synchronization: OneDrive, iCloud, photo libraries, and automated backups often create bursts at inconvenient times. Schedule or cap them during meetings and concentrated work periods.

Build the queue around the uplink

Set the router's traffic shaper to the measured upstream rate, then create a priority order. On Ubiquiti equipment, use Smart Queues or traffic rules where appropriate. On TP-Link Omada, apply bandwidth controls and client or application priorities. On pfSense, use its traffic-shaping tools to classify interactive traffic and limit bulk transfers.

The exact menu differs, but the workflow stays consistent:

1. Identify the work laptop, phone, and VoIP device.
2. Give live voice and video the highest priority.
3. Place active work uploads below calls but above background backups.
4. Cap or schedule sync traffic during meetings.
5. Test with a call running while a backup or upload is active.

Intel's Wi-Fi guidance supports reserving the strongest compatible wireless configuration for the primary work device, while broader network troubleshooting guidance from TechTarget's common network issues guide reinforces that reliability problems involve capacity, packet loss, and connectivity, not just headline speed. If your provider offers support tools or communication services, Premier Broadband's Web2Chat page is another example of why responsive communication matters when a connection needs attention.

Don't prioritize downloads automatically. Many remote-work failures happen on the upload side, where video calls, file submissions, and backups compete for the same limited queue. A successful test is simple: start a normal meeting, trigger the household's typical backup workload, and confirm that speech stays clear and video remains stable.

Segmenting Work, Family, and Guest Devices

A firewall protects the network boundary. Segmentation controls what happens after a device gets inside. That distinction matters in homes filled with printers, cameras, smart speakers, televisions, and connected appliances.

A guest SSID is the simplest separation. It keeps visitors and casual users away from shared folders and work devices, but it may not isolate every category of household equipment from your primary network. A dedicated work SSID with client separation provides a practical middle ground for many homes. A VLAN design goes further by placing work, family, IoT, and guest devices on separate logical networks with explicit rules between them.

Choose the smallest design that solves the risk

A flat network is easy to operate, but a compromised smart plug may share a broadcast domain with a work laptop and file server. A guest network reduces the risk from visitors and temporary devices, but it isn't a complete IoT strategy. A VLAN layout can prevent an IoT device from reaching the work subnet, yet it introduces tagged ports, firewall rules, and more opportunities for configuration mistakes.

For most small home offices, start with a dedicated work SSID and a guest SSID, use WPA3 Personal where compatible or WPA2 Personal where necessary, and set a unique router administrator password. Enable client isolation on guest access, keep firmware current, and avoid exposing administrative interfaces unnecessarily. When the home adds many IoT devices, another remote worker, or sensitive local services, move toward separate VLANs.

The goal isn't maximum complexity. It's a clear answer to the question, “Which devices should be allowed to talk to each other?” A managed protection service such as Premier Broadband's PackLock offering can be considered alongside the router's own controls, but the underlying design still needs understandable network boundaries.

Testing and Troubleshooting for a Stable Workday

A stable network should have a repeatable morning check, not a panic routine that starts only after the first call breaks up. The baseline can be short if you test the right layers in order.

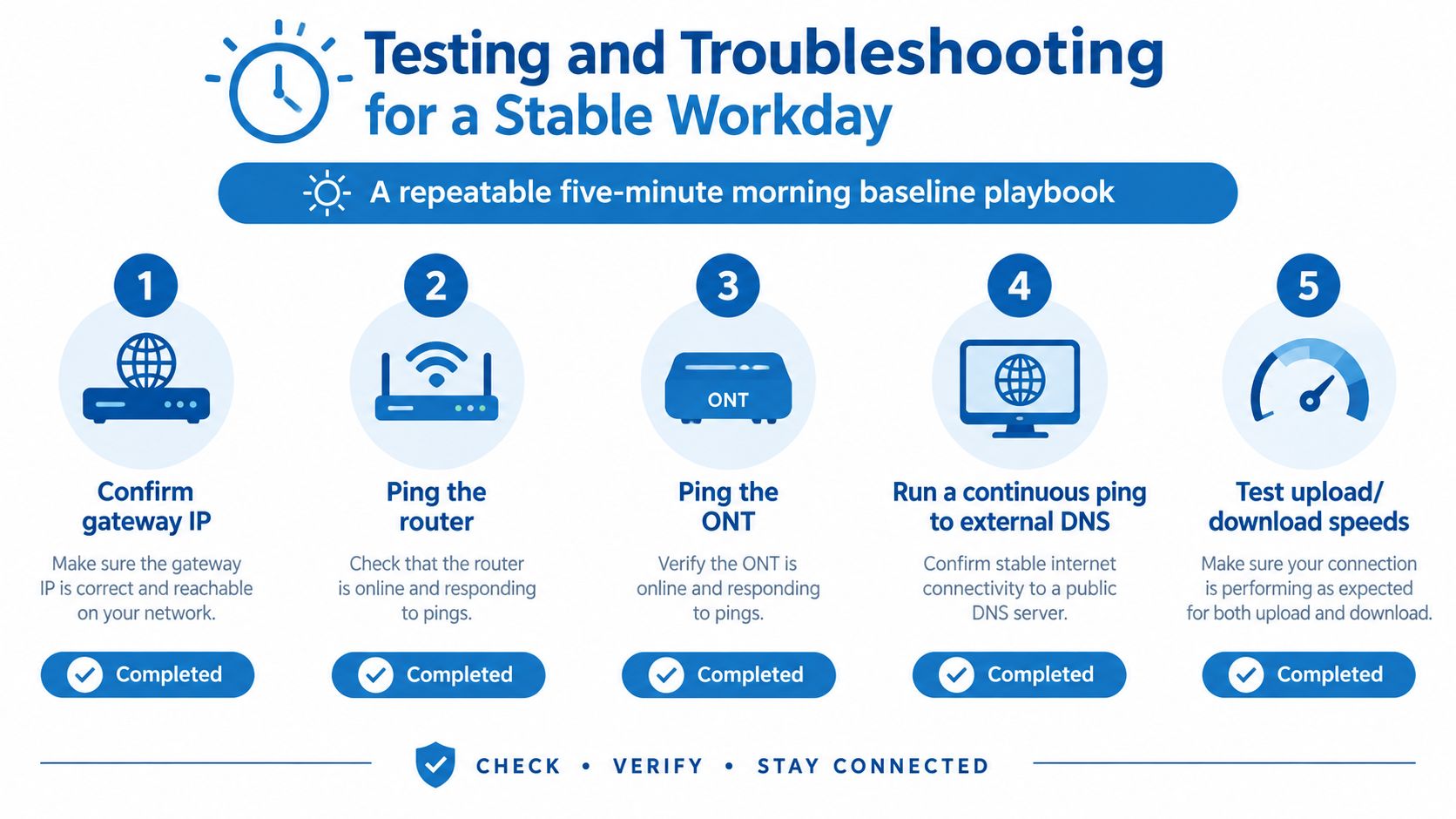

Run the five-minute baseline

Begin at the desk, preferably over the connection used for meetings.

1. Confirm the gateway: Check that the device has received the expected local gateway information.
2. Ping the router: A clean response from the local router helps separate local wireless or cabling trouble from upstream problems.
3. Ping the ONT path: If your equipment exposes the handoff or diagnostic path, test it before blaming the access point.
4. Run a continuous external ping: Use a reputable external DNS endpoint for roughly two minutes and look for loss or unstable delay, not just average response time.
5. Measure both directions: Run a speed test during a normal workload and pay particular attention to the uplink.

The exact tools can vary. Waveform and Fast.com can help expose a connection that behaves differently under load, while a meeting application provides the most relevant application-level test. Don't treat any single result as definitive.

Reproduce the household workload

A useful test combines the conditions that normally cause trouble. Run a 10-minute Zoom call while another household member streams, then start a large upload or scheduled synchronization. Walk the laptop from the desk toward another room to check whether roaming behaves sensibly or whether it clings to a distant access point.

Match symptoms to likely layers:

• Choppy audio: Often points to uplink saturation, queue delay, or wireless interference.
• Frozen video with otherwise good throughput: Investigate packet loss, radio stability, and WAN path behavior.
• Slow wired transfers: Check the cable, switch port, duplex negotiation, and adapter drivers.
• Problems only during backups: Review the traffic shaper and synchronization schedule.

Keep a small log with the time, connection type, workload, observed symptom, and what changed. If you restart equipment, use a consistent order, starting with the provider handoff or modem path, then the router, switches, access points, and clients. That sequence prevents you from testing a downstream device while an upstream component is still unavailable. A feedback workflow such as Premier Broadband's PollHero survey tool illustrates the broader value of collecting structured observations instead of relying on memory after a frustrating outage.

Tailoring the Setup to Premier Broadband

The hardware should match the service handoff and the workday requirements. For a fiber connection, keep the path understandable: ONT to router to PoE switch to access point, with a small managed switch supplying fixed desk devices. That arrangement makes it easier to identify whether a fault sits at the provider handoff, routing layer, switch, access point, or client.

Premier Broadband's Home Office Hero plan is positioned for home-office use, including video calls and file transfers. Its fiber offering uses symmetrical upload and download speeds, so upstream traffic deserves the same design attention as downstream browsing. That makes router shaping, backup scheduling, and wired desk connections more relevant than merely selecting the largest download figure.

Match each feature to a job

Use a router with hardware acceleration that can maintain routing, firewalling, VLANs, and traffic rules without becoming the bottleneck. Add a managed Wi-Fi 6 access point near the work area when the all-in-one gateway can't provide consistent coverage or client behavior. Use wired backhaul where possible, and reserve the strongest wireless settings for the main work client.

A managed Wi-Fi service can also make sense for households that don't want to plan firmware updates, channel selection, and security maintenance themselves. It won't compensate for poor placement, overloaded uplinks, or a tangled topology, but it can reduce the operational burden when the network needs regular attention.

Before ordering, document the ONT location, desk position, required wired devices, IoT categories, and the times when backups run. Then ask the provider which Home Office Hero options, managed Wi-Fi services, static IP features, and support commitments match that design. This turns the purchase into an engineering decision rather than a promise that a new box will solve every workday problem.

Premier Broadband offers fiber internet, home-office connectivity, managed Wi-Fi, and related voice and network services that can support a reliability-focused design. Visit Premier Broadband to review the available options, then match the service and hardware to your desk layout, upload workload, and segmentation needs.
